SiC Heating Elements
Silicon carbide heating elements and SiC heater rods supplier for industrial furnaces, tunnel kilns, roller kilns and other high-temperature heating equipment.
Silicon carbide heating elements, also called SiC heater rods, are non-metal high-temperature heating elements for industrial furnaces, tunnel kilns, roller kilns, glass furnaces and heat treatment equipment. This category covers DB, ED, H, SG, SGR, U and W type silicon carbide elements.
For full technical background, parameters and Starbar or Globar replacement notes, see the silicon carbide heating elements guide. To compare materials, use the SiC vs MoSi2 selection guide.
SiC Heating Elements
DB type silicon carbide heating elements for industrial furnaces, experimental furnaces and high-temperature electric heating applications.
View details
SiC Heating Elements
ED type SiC heating elements for tunnel kilns, roller kilns, glass kilns, vacuum furnaces and smelting furnace heating systems.
View details
SiC Heating Elements
H type silicon carbide heating elements for high-temperature furnaces, with dimension, operating, terminology and replacement RFQ guidance.
View details
SiC Heating Elements
SG type silicon carbide heating elements for industrial kilns, powder metallurgy, ceramics, glass and semiconductor heating equipment.
View details

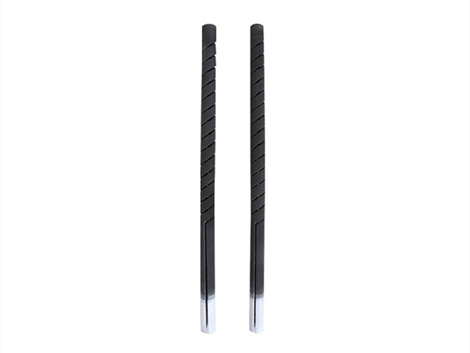

SiC Heating Elements
SGR type silicon carbide heating elements for furnace heating applications in ceramics, powder metallurgy, glass and semiconductor production.
View details

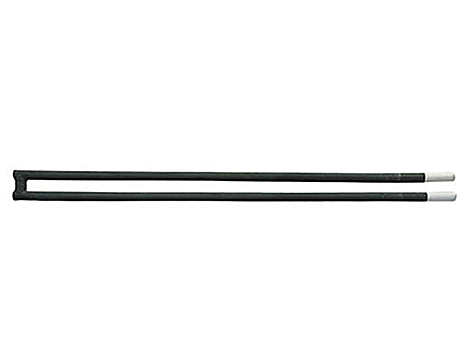

SiC Heating Elements
U type silicon carbide heater rods for high-temperature furnaces, kilns and electric heating equipment requiring stable furnace heating.
View details

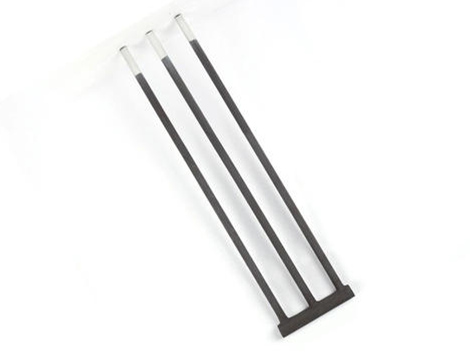

SiC Heating Elements
W type silicon carbide rod heaters for furnace replacement projects, covering SiC rod dimensions, leg spacing, phase resistance, atmosphere and RFQ data.
View detailsHenan Lasting supplies rod, U, W, single spiral and double spiral SiC element shapes. DB, ED, H, SG, SGR and U type elements cover industrial furnaces, tunnel kilns, roller kilns, glass kilns, vacuum furnaces and semiconductor heating layouts.
SiC heater rods are commonly supplied in 8-54mm diameter, with hot zone, cold end and overall length matched to the furnace chamber. Confirm the dimensions from the furnace drawing or the old rod before requesting a quote.
| Element shape | Typical furnace use |
|---|---|
| DB and ED type | Tunnel kilns, roller kilns and general industrial furnaces. |
| H, SG and SGR type | High-temperature furnaces for ceramics, glass, powder metallurgy and semiconductors. |
| U and W type rod | High-temperature furnaces and replacement projects where a bent element shape is required. |
Confirm the maximum element temperature (up to about 1600℃ in clean dry air) and the recommended surface loading of 3-8 W/cm² against the real furnace atmosphere.
For series connection keep resistance within +/-5%; for parallel connection within +/-10%. Measure resistance at 1000℃ or above, because room-temperature resistance does not represent high-temperature resistance.
FAQ
Rod, U, W, single spiral and double spiral shapes, including DB, ED, H, SG, SGR and U type elements for different industrial furnace and kiln layouts.
SiC elements can reach up to about 1600℃ element temperature in clean dry air; the furnace atmosphere may reduce the practical service temperature.
Recommended surface loading is 3-8 W/cm² for furnace design; lower surface load is preferred when longer service life is required.
Provide element type, diameter, hot zone length, cold end length, resistance, furnace temperature, quantity and application.
Henan Lasting is not affiliated with those brands but can match SiC elements by shape, dimensions, resistance and furnace conditions. See the silicon carbide heating elements guide for replacement notes.
